LAN CARD – PCI-E 10/100/1000MBPS

HARDWARE FEATURES

• Standards and Protocols IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p, CSMA/CD, TCP/IP
• Interface 32-bit PCI Express
• 1 10/100/1000Mbps RJ45 port
• Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000Base-T: UTP category 5, 5e cable (maximum 100m)

LED Status

• Wireless Standards IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x
• Data Rates 10/100/1000Mbps for Half-Duplex mode
• 20/200/2000Mbps for Full-Duplex mode
• LED Indicator 1000Mbps Link/Act, 100Mbps Link/Act, 10Mbps Link/Act
• Dimensions 3.1 × 4.8 × 0.8 in (78.5 × 120.8 × 21.5mm)
• Flow Control IEEE 802.3x Flow Control (Full-Duplex)

OTHERS

• Certification CE, FCC, RoHS

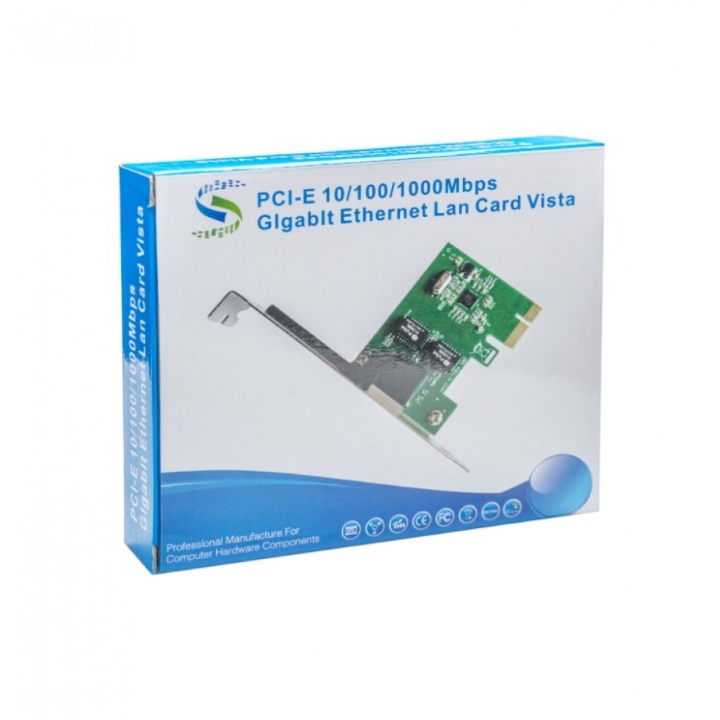

• Package Contents Gigabit PCI Express Network Adapter TG-3468
• Resource CD
• Quick Installation Guide
• System Requirements Windows 7(32/64bits),Windows Vista(32/64 bits),Window XP(32/64bits)
• Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
