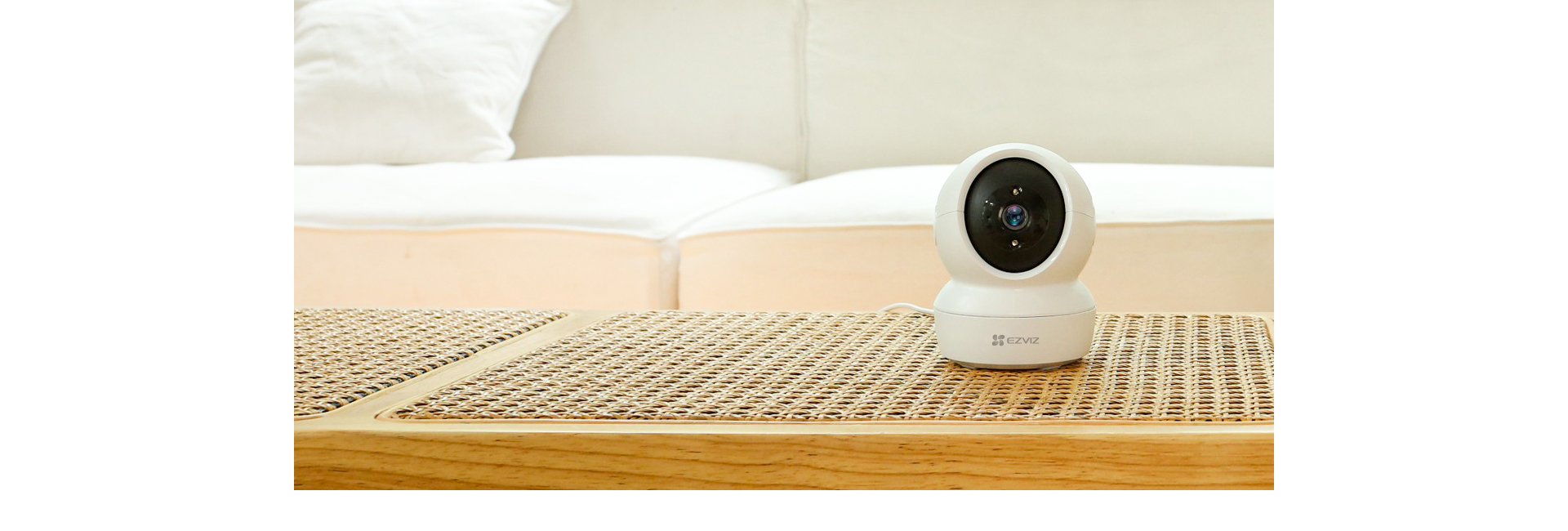

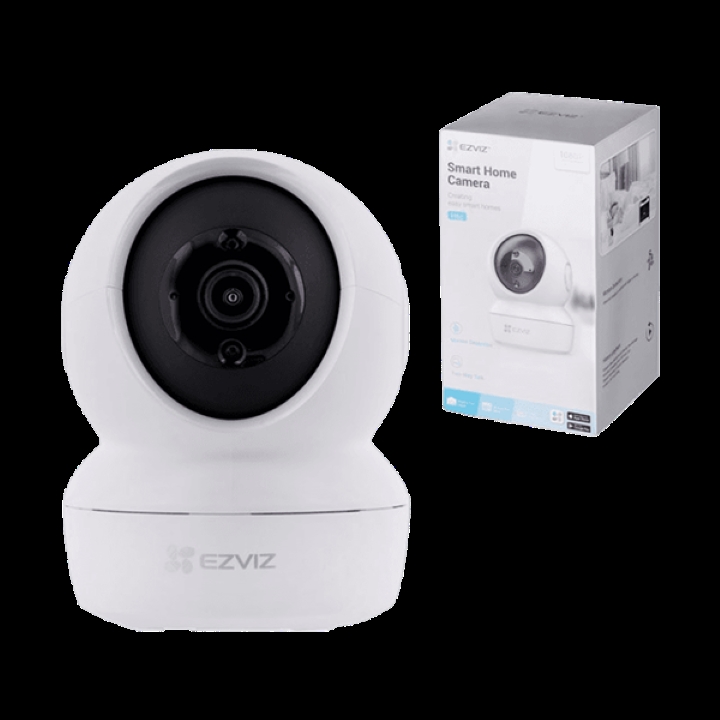

CAMERA EZVIZ CS-H6C (2 YEARS WARRANTY)

Specifications

• Model CS-H6c-R101-1G2WF

Camera

• Image Sensor F2.4 @ 1/3″ Progressive Scan CMOS
• Shutter Speed Self-adaptive shutter
• IR Night Vision Distance Up to 10 m (33 ft)
• Lens 4 mm, viewing angle: 85° (Diagonal), 75° (Horizontal), 45° (Vertical)
• Lens Mount M12
• DNR 3D DNR
• WDR Digital WDR
• Day & Night Switch IR-cut filter with auto-switching

Video & Audio

• Max. Resolution 1080p, 1920 × 1080
• Frame Rate Max. 15 fps; Self-Adaptive during network transmission
• Video Compression H.264
• Video Bit Rate Quad HD, Full HD, HD, Standard. Adaptive bit rate.

Storage

• Local Storage Supports microSD card (Up to 256 GB)
• Cloud Storage Supports EZVIZ CloudPlay storage (subscription required)

Network

• Wi-Fi Standard IEEE 802.11 b, 802.11 g, 802.11 n
• Frequency Range 2.4 ~ 2.4835 GHz
• Channel Bandwidth Supports 20 MHz
• Security 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK
• Transmission Rate 11b 11 Mbps, 11g 54 Mbps, 11n: 72 Mbps
• Wi-Fi Pairing AP paring
• Protocol EZVIZ Cloud Proprietary Protocol
• Interface Protocol EZVIZ Cloud Proprietary Protocol

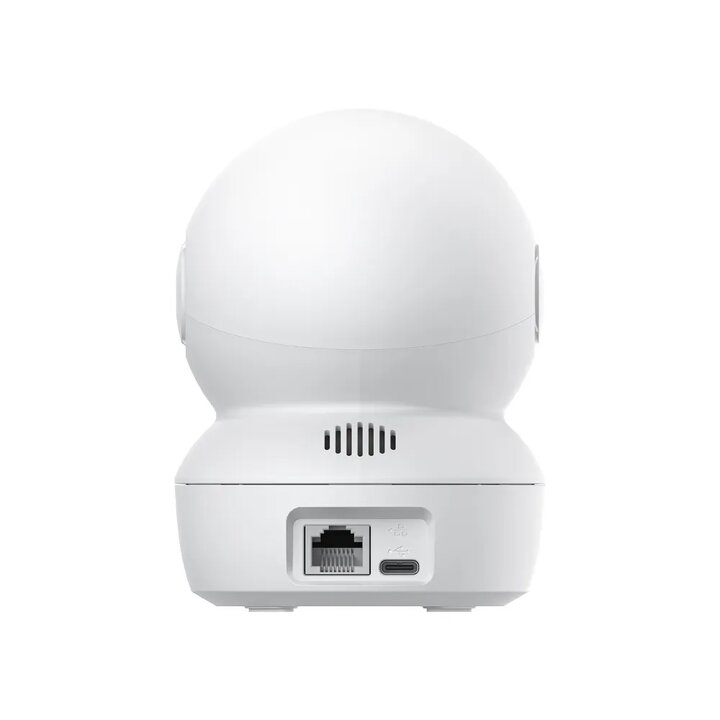

• Wired Network RJ45 × 1 (10M / 100M Adaptive Ethernet Port)

General

• Dimensions 88 × 88.2 × 119 mm (3.46 × 3.47 × 4.69 in)
• Packaging 103 × 103 × 186 mm (4.06 × 4.06 × 7.30 in)
• Net Weight 218 g (7.69 oz)
• Operating Conditions -10° to 45° C (14° to 113° F) Humidity 95% or less (non-condensing)

Power

• Power Supply DC 5V / 1A
• Power Consumption Max. 5 W

In the box

• In the box – H6c Camera
• – Base
• – Screw Kit
• – Power Cable
• – Drill Template
• – Power Adapter
• – Quick Start Guide
• – Regulatory Information

Certifications

• CE / UL / FCC / WEEE / REACH / RoHS / UKCA
