CAMERA – C3-H8C-R100 (4MP) 2 YEARS

Specifications

• Model: Model CS-H8c (1080P)

Camera

• Image Sensor : 1/2.7″ Progressive Scan CMOS
• Shutter Speed: Self-adaptive shutter
• Lens: 4mm @ F2.0, viewing angle: 46° (Vertical), 89° (Horizontal), 104° (Diagonal) 6mm @ F2.0, viewing angle: 28° (Vertical), 52° (Horizontal), 60° (Diagonal)

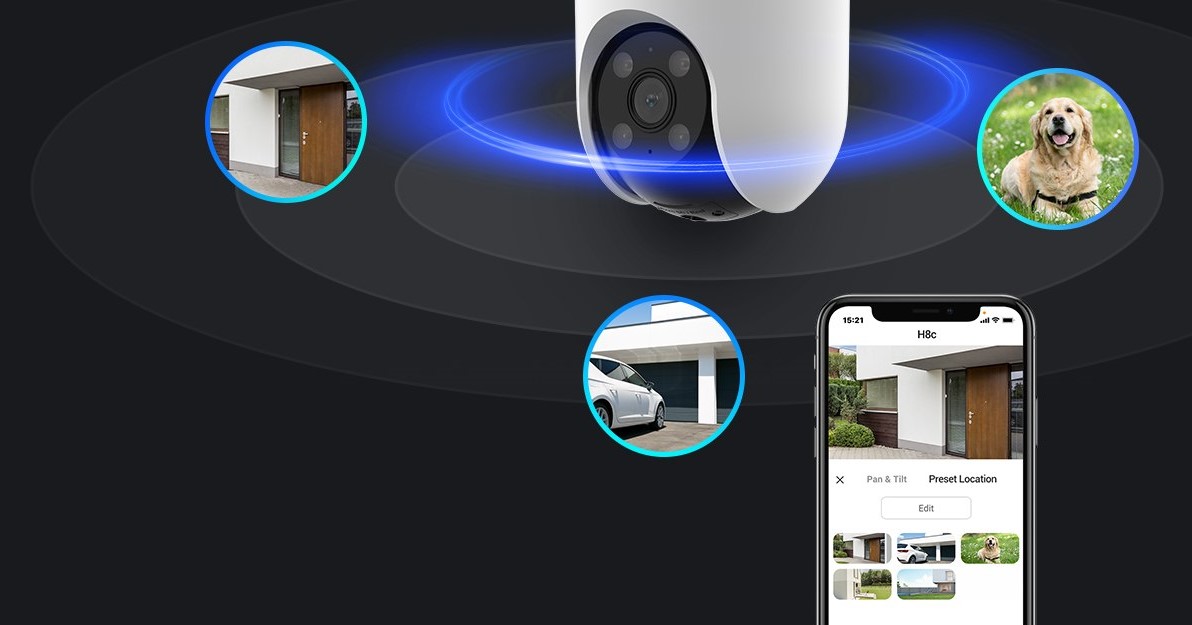

• PT Angle: Pan: 350°, Tilt: 80°
• Minimum Illumination: 0.5 Lux @ (F1.6, AGC ON), 0 Lux with IR (Data is obtained from EZVIZ laboratories)
• Lens Mount: M12
• Day & Night: IR-Cut filter with auto-switching
• DNR: 3D DNR
• WDR: Digital WDR

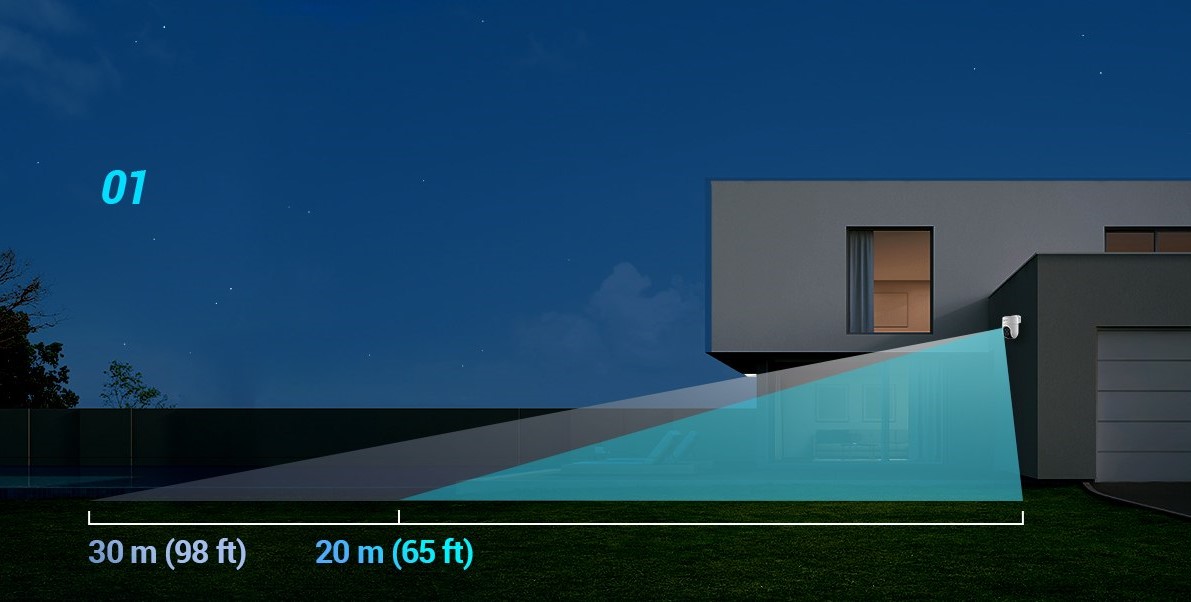

• Night Vision Distance: 30 m / 98 ft

Video & Audio

• Max. Resolution 1920 × 1080
• Frame Rate Max: 30fps; Self-Adaptive during network transmission
• Video Compression H.265 / H.264
• H.265 Type Main Profile
• Video Bit Rate Full HD; Hi-Def; Standard. Adaptive bit rate.
• Audio Bit Rate Self-Adaptive
• Max. Bitrate 2 Mbps

Network

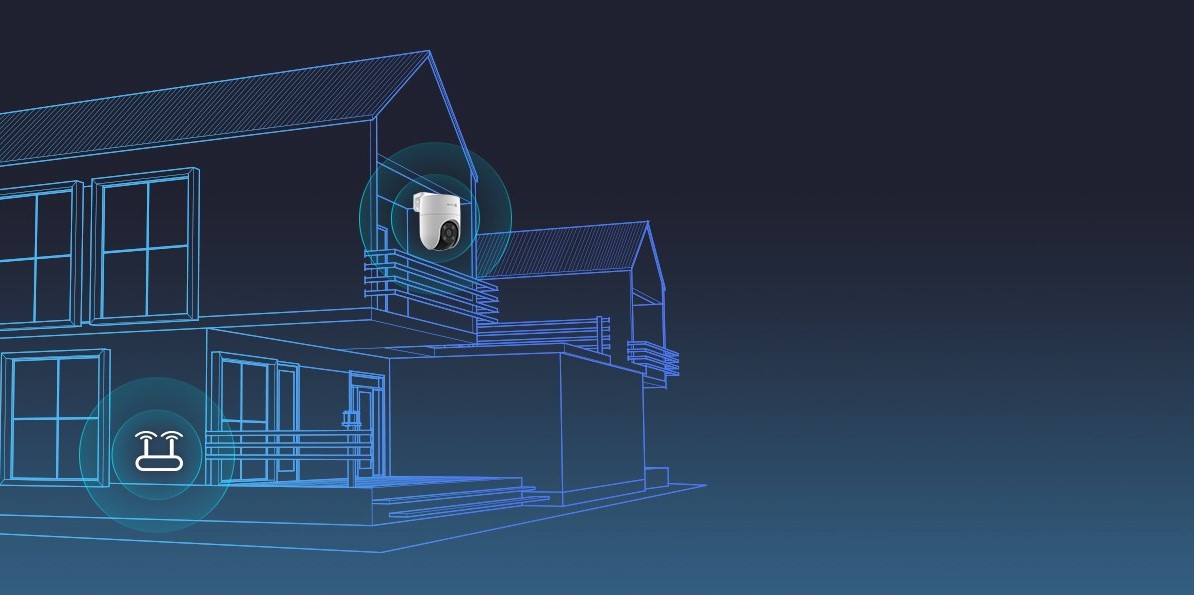

• Wi-Fi Standard IEEE802.11b, 802.11g, 802.11n
• Frequency Range 2.4 GHz ~ 2.4835 GHz
• Channel Bandwidth Supports 20 MHz
• Transmission Rate 11b: 11 Mbps,11g: 54 Mbps,11n: 72 Mbps
• Wi-Fi Pairing AP pairing
• Protocol EZVIZ Cloud Proprietary Protocol
• Interface Protocol EZVIZ Cloud Proprietary Protocol
• Wired Network RJ45 × 1 (10M / 100M Adaptive Ethernet Port)

Storage

• Local Storage MicroSD card slot (Up to 512GB)
• Cloud Storage EZVIZ Cloud Storage (Subscription Required)

Function

• Smart Alarm AI-Powered Human Shape Detection
• Customized Alert Area Supports
• Two-way Talk Supports
• General Function Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark General
• Operating Conditions -30 °C to 50°C ( -22 °F to 122 °F ), humidity 95% or less (non-condensing)
• IP Grade Weatherproof Design
• Power Supply DC 12V / 1A
• Power Consumption MAX. 12W

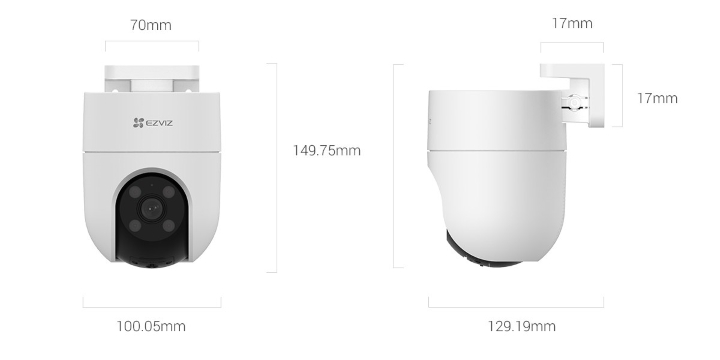

• Dimensions 100.05 × 129.19 × 149.75 mm (3.94 × 5.09 × 5.9 inch)
• Packaging Dimensions 140 × 140 × 192 mm (5.51 × 5.51 × 7.56 inch)
• Weight (With package) 730 g (25.75 oz)
• Net Weight 420 g (14.8 oz)

In the box

• In the box – H8c Camera

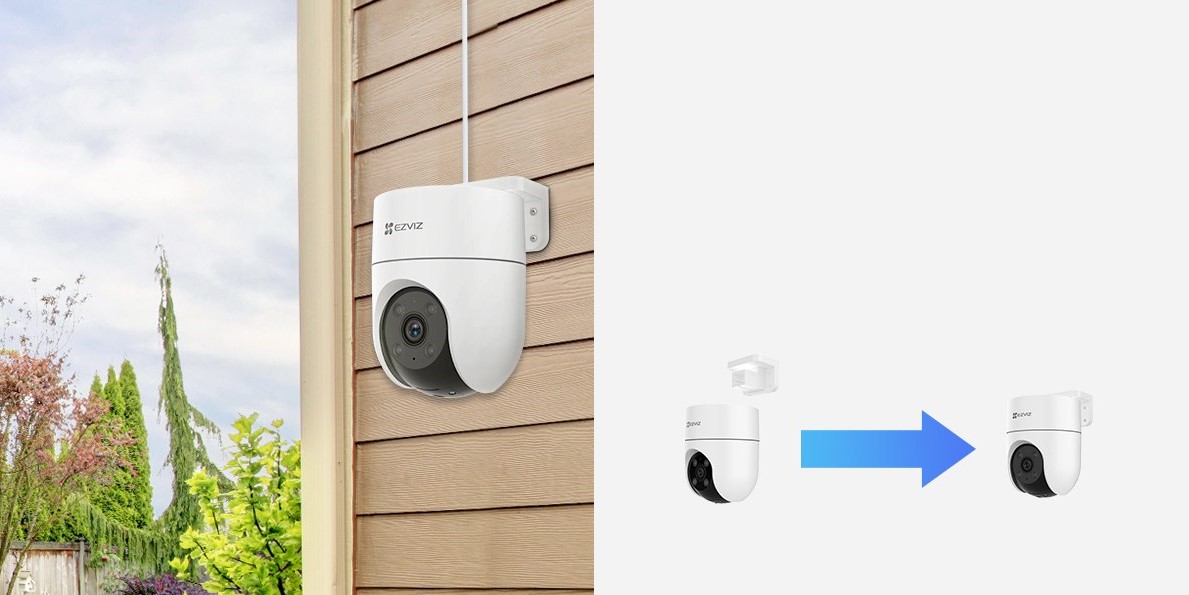

• – Drill Template
• – Screw Kit
• – Waterproof Kit
• – Power Adapter
• – Regulatory Information
• – Quick Start Guide

Certifications

• CE / FCC / UKCA / UL / WEEE / RoHS / REACH
